Deferrization systems
R710 REM3000 and REM4000
Over 45 years of experience with
Open deferrization
At Remon, a deferrization plant is an open purification system in which well water (groundwater) is atomized at the top of the filter tower. The presence of oxygen oxidises metals like iron and manganese in the back of the filter package. If the filter pack is saturated over time, the backwash system is automatically activated. A reverse flushing cycle, in combination with gusts of wind, ensures that the filter package is cleaned and ready for further purification. Remon started the production of the first real ‘fully automatic’ deferrization plant more than 45 years ago.
Raised filter towers
Air pressure protection
Automatic flushing system
Online operable and controllable
24/7 Service for continuous water
Capacity up to >100 m3 per hour thanks to FLOW system
No salt consumption
No need for an intermediate basement in industrial systems
Control
Via proprietary PLC control system
with 7 inch color touchscreen
Source or submersible pump
Draws water from the source
Filter barrel
Made of high-quality polyethylene
Capacity
To approximately 3 á 4 m³ per hour
Pressure pump
Booster pump that ensures the water is pressurized.
Dimensions
210 x 80 x 100 cm (HxBxD)
or
260 x 80 x 100 cm ( HxBxD)
Screw cap
For system inspection and maintenance
R710 deferrization
The R710 is the successor to the R700. Equipped with energy-efficient pumps, improved technical components, and proven REMON quality, it forms a water treatment system capable of handling large daily volumes of iron- and manganese-rich source water. This makes it ideal if you require more than 1,000 m³ annually.
Reliable, safe, and low-maintenance. The PLC control (Programmable Logic Controller) is the core of the R710. This intelligent control system manages the R710’s operational processes, monitors functions, and ensures optimal safety. The result is an effective and energy-efficient treatment/purification of your source water with consistent quality.
REM3000 deferrization
The REM3000, built on four decades of REMON expertise and advanced communication technology, represents a new era in water treatment. This successor to the REM2000 iron removal system efficiently removes iron, manganese, methane, and hydrogen sulfide from source water. The process enriches the water with oxygen, resulting in an excellent taste. The intelligent REM3000 independently and environmentally manages all processes, while its simple operation and numerous features ensure top performance in producing high-quality water.
Controlsystem
Via proprietary PLC control system
with 7 inch color touchscreen
Filter tower
Made of high-quality double-walled polyethylene
Schrew cap
for control and maitenance
Capacity
to approximately 3 á 4 m³ per hour
Source or submersible pump
Draws water from the source
Dimensions
210 x 80 x 100 cm (HxBxD)
or
260 x 80 x 100 cm (HxBxD)
Integrated collection cover
reduces noise and condensation
Pressure pump
Booster pump that ensures the water is pressurized.
Control system
Via proprietary PLC control system
with 7 inch color touchscreen
Filter tower
Screw cap
With a diameter of approximately 40 cm
for system inspection and maintenance
Dimensions
260 x 120 x 140 cm (HxBxD)
Pressure pump
Booster pump that ensures
the water is pressurized.
Capacity
approximately 6 to 8 m³ per hour.
Source or submersible pump
draws water from the source.

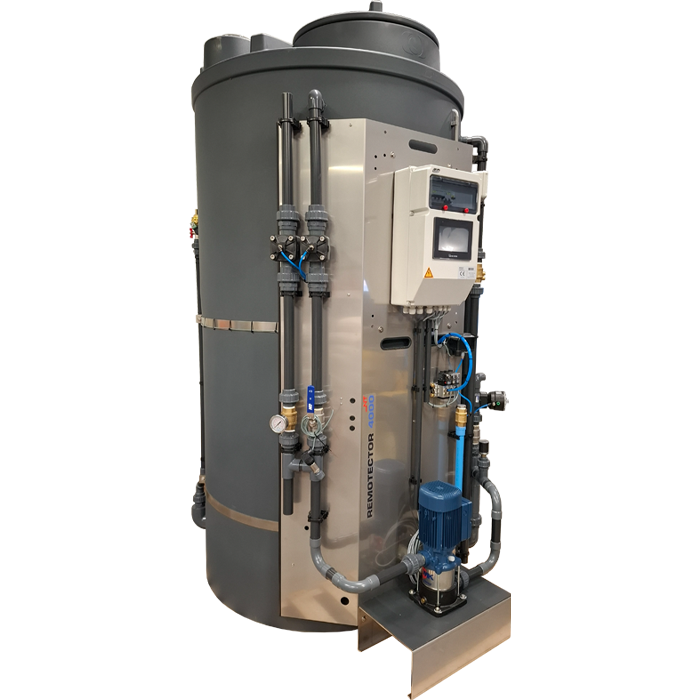

REM4000 deferrization
The Rem4000NT is Remon’s largest iron removal system, with a capacity easily reaching up to 8 m³. It features a single-walled PE filter tower and ensures maximum reduction of water costs while maintaining optimal source water quality. The system reduces (residual) iron and harmful gases in the source water through intensive aeration. This professional unit is equipped with a mechanical ventilation system for air intake and exhaust. The Rem4000 is highly suitable for large consumers and ideal for series or parallel configurations.
Patented flushing system
REMOTECTOR®
All Remon iron removal systems are equipped with Remotector®. Remotector® is an integrated sensor that precisely measures when the filter bed is saturated. The major advantage is that Remon systems never backwash unnecessarily, saving both energy and rinse water. Many iron removal systems on the market are pre-programmed to backwash at fixed times or, worse, based on volume. Calculating the exact timing is difficult, causing these systems to backwash more often than models equipped with Remotector®. This results in significant savings on backwash costs.
Only Remon is authorized to use the uniquely patented Remotector® technology. This means your system backwashes fully automatically—only when necessary—not at preset times or volumes like other suppliers’ systems.
Your own (miniature) drinking water company
ready for the future
More than 40 years of experience come together in our latest open-ended deferrization systems. Computer control, online operation, and the latest type of pumps make these machines future-proof.
With our open deferrization plants you can enjoy clean and clear water, free of iron and other impurities. Whether you have a private home, an agricultural business or an industrial complex, our facilities offer reliable and effective water treatment for a variety of applications. The technique used is the same as at the large drinking water companies: open oxidation. This technique removes gases from the water source, adds oxygen to the water, and removes oxidable substances like iron and manganese from the groundwater. Our installations are equipped with advanced control systems and special media that effectively remove iron particles, even at high concentrations. This ensures that water meets the most stringent standards and guidelines. Through our FLOW technique, we can set up multiple machines in parallel, so that during flushing, there is always enough water available and no intermediate buffer is required.
In addition, our open deferrization plants are very efficient and user-friendly. They are designed to work automatically and require minimal maintenance. No more adding salt, and with a properly dimensioned system, you never have to clean pipes again. This saves you valuable time and energy, allowing you to concentrate on other important tasks.
One machine for each
Waterdemand
The open deferrization installations by Remon are versatile and can be used in multiple ways. Such an installation can be applied in a single setup or, in the case of an intensive purification demand, in series. For a larger water demand, installations can be placed in parallel.
Single Line-up:
The installation is directly connected to the waterwell, and with an underwater pump or an above-ground pump, the water is pumped directly into the installation. Here, the water is atomized, and iron and manganese are oxidized, allowing the watersource gases to escape, and the oxides are captured. At the bottom of the installation, the water is pumped away and transferred to the point of consumption.
Serial line-up:
In the case of water that requires an even more intensive purification for iron and manganese, multiple (often 2) installations are placed in series, one after the other. This allows for a slightly higher flow than a single setup, and the purification intensity is increased. The two installations are controlled from a single control panel.

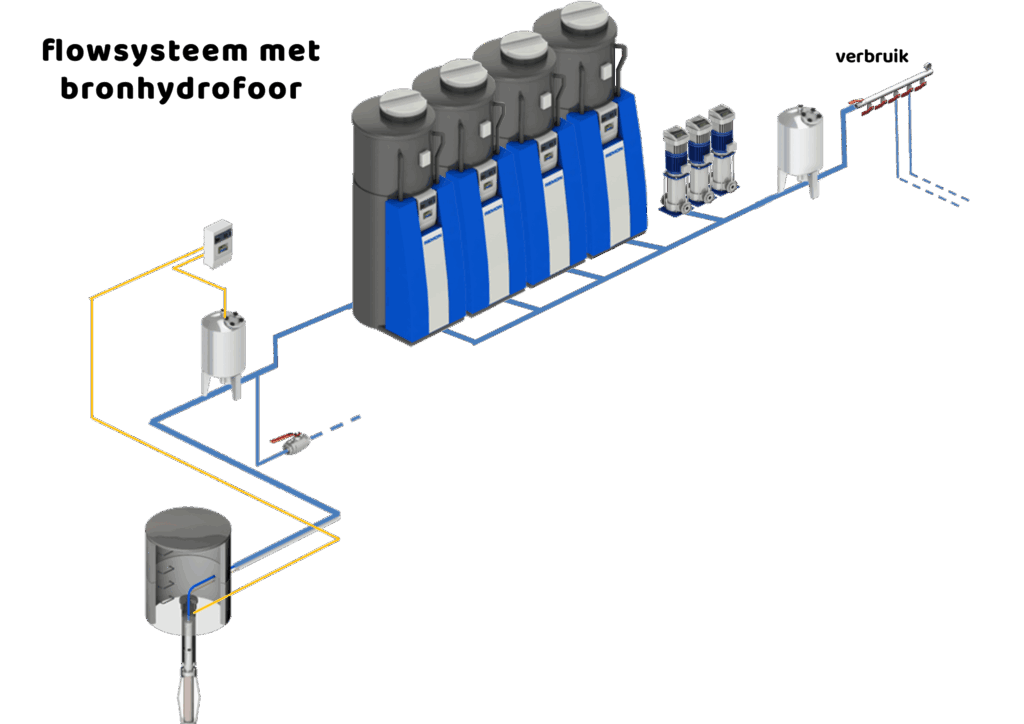

Parallel line-up:
If the water demand is higher than the capacity of a single machine, it is possible to choose to place multiple machines next to each other. The source pump is then configured like a hydrofoil, and the installations ‘tap’ their water from the source pump themselves. In this way, capacities of more than 100 m3/h can be achieved without compromising the quality of the purified water. For larger systems, the FLOW technology is often used with a central pump set to keep energy consumption as efficient as possible.
Remon deferrization plants compared to other suppliers.
Technical advantage
1. Elevated filter tower
All Remon deferrization plants are available with an elevated filter tower. This makes the water optimally aerated and oxygenated.
2. Air pressure protection
In the event that a fault in the air compressor occurs, the installation is put into standby mode until the fault is resolved. Many other deferrization plants continue to operate, with all the consequences this entails.
3. High level protection
If the drain line becomes blocked and the installation cannot get rid of its flushing water, the installation automatically switches to standby mode until the fault is resolved. Therefore, you will not be at risk of water damage due to flooding of the filter tower.
4. Automatic flushing system:
Remotector An integrated sensor measures exactly when the filter bed is saturated. This ensures that the installation never flushes too often and no energy is wasted. Many deferrization installations in the market are pre-set and flushed at these times. It is difficult to calculate exactly, therefore, these systems flush sixty percent more often than a model that is equipped with the Remotector.
5. Double-walled and with integrated drip tray
The REM3000 is standard double-walled and equipped with an integrated drip tray. This prevents condensation on the outside and the floor will not become wet.
6. Online and touch screen
Our deferrization plants are equipped with a fully digital operating system. All processes can be operated and monitored online. Because everything can be traced, we can perfectly adjust the installation to your water quality and water consumption. As a result, the plant will purify water even more efficiently.
